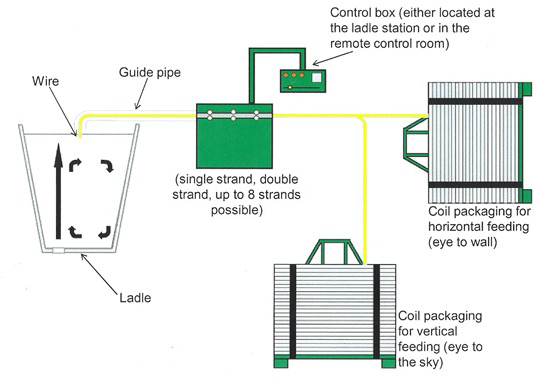

Note: All coils are available in either vertical or horizontal presentation, and up to 1200mm in width. Other inner diameters are available on request.
Wire diameters
- Nominal 9 mm for Pure-Cal high yield cored wire
- Industry standard 13 mm and 16 mm for conventional cored wires
- Smaller sizes for foundry applications available
- Other diameters available on specific request
Typical diameter: density relationship by product (grams/metre)
| Product |
Description |
4mm |
5mm |
9mm |
13mm |
16mm |
| Pure-Cal | Pure Calcium | — | — | 60 | — | — |
| CaSi 110 | Calcium-silicon | 16 | 25 | 110 | 225 | 330 |
| CaFe | Calcium-iron | — | — | 122 | 250 | 365 |
| AlCaFe | Aluminium-calcium-iron | — | — | 200 | 300 | — |
| FeTi | Ferrotitanium | 25 | 40 | 165 | 370 | 570 |
| S | Sulphur | — | — | 190 | 280 | — |
| FeB | Ferroboron | 30 | 45 | 200 | 550 | 825 |
| C | Carbon | — | — | — | — | — |
| Mg | Magnesium | 10 | 15 | 60 | 140 | 210 |
| NOC | Ferrosilicon inoculant | 18 | 27 | 110 | 240 | — |
All products could be colour coded to customer specification.
